KERONG IP66 430 Stainless Steel Electronic Locker Lock

Product Categories
Shenzhen Kerong Industry Co., Limited
Contact Now

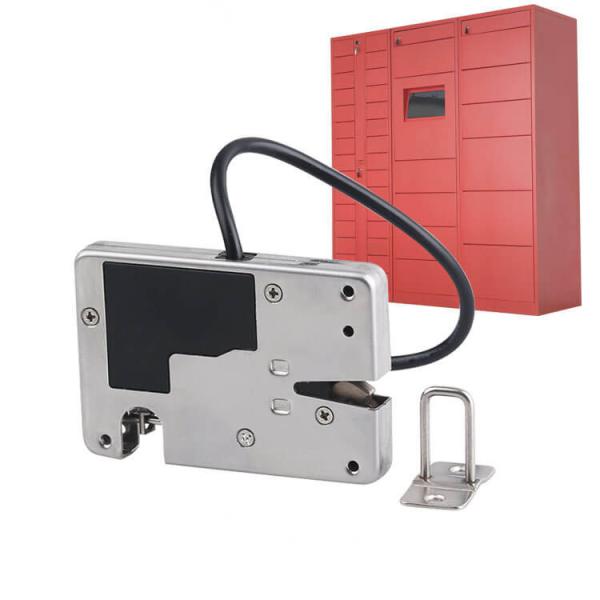

KERONG IP66 430 Stainless Steel Electronic Locker Lock

  • 1
  • 2

Brand Name : KERONG

Model Number : KR-S98C

Certification : CE; ISO9001; FCC; RoHS

Place of Origin : China

MOQ : 1 piece

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram,PayPal

Supply Ability : 50,000 pieces per month

Delivery Time : 5-15 days working time

Packaging Details : The material of Package: K=K Reinforcement Carton;Carton:60PCS/CTN or customize according to customers' requirements

Product Name : Electromagnetic Waterproof Lock

Model : KR-S98C

Material : 430 stainless steel+PA+GF

Working Voltage : 12V/24V

Working current : 2.4A/1.2A

Size : 98*66*13.8 mm

Driven mothod : Solenoid

IP rating : IP66

Usage : Delivery cabinet /Sauna locker/School locker/ Chest freezer etc

Samples : ≤3 pcs

Contact Now

KERONG IP66 430 Stainless Steel Electronic Locker Lock


Product parameters:

Model KR-S98C
Size 98*66*13.8 mm
Name Electromagnetic Waterproof Lock
Weight 197g
The material 430 stainless steel+Zinc alloy lock tongue
Working voltage 12V/24V
Working current 2.4A/1.2A
Maximum power 28W
Reaction time Less than 20ms
Working temperature -20℃ ~ +60℃
Working humidity 5% ~ 85%RH
Working life 500,000 times
Door weight 0.5KG~10KG
Test Salt spray testing 48 hours
Usage Parcel cabinet /logistics locker/School locker/ Chest freezer etc
Certification CE; FCC; RoHS
OEM Accepted


Product Main Features:
1. Driven by the motor, more stable and lower power consumption support 12V & 24V
2. Lock shells are made from deactivated 430 stainless steel, anti-force performance: 250kgs
3. IP66 Waterproof. All electronic parts are protected in the sealed ABS box
4. Built-in push block helps push the door, thrust can be adjusted
5. Lock hook detection function
6. Mechanical emergency lever, can be unlocked manually in case of a power outage
7. AWG24 wires with PVC protecting tube
8. Support customizing wires and terminals

KERONG IP66 430 Stainless Steel Electronic Locker Lock

KERONG IP66 430 Stainless Steel Electronic Locker Lock

KERONG IP66 430 Stainless Steel Electronic Locker Lock

KERONG IP66 430 Stainless Steel Electronic Locker Lock

KERONG IP66 430 Stainless Steel Electronic Locker Lock
Other Lock Options

Model

 Size Working voltage Maximum power IP rating Revolution speed

KR-S70

 70*68*18mm 12V/24V 1.2W IP66 1 Rev/s


KR-S78

 78*66.2*20.3mm 8V/24V 0.72W / 4.5 Rev/s


KR-S79

 79*82.5*19.2mm 8V~24V 0.96W IP66 4.5 Rev/s


KR-S91

 91*66.2*20.3mm 8V/24V 0.72W / 4.5 Rev/s

Feel free to contact us for more information, we sincerely welcome your inquiry.
